Many processors treat equipment selection like buying one machine at a time: pick a filler, pick a capper, done. That approach creates problems later. A filler that outruns your case packer just pushes the backup downstream.
Oliver Winery's new bottling line nearly doubled output, reaching 12,000 bottles per hour versus the old line's roughly 7,000 max. Not from one faster machine, but because infeed, filling, closing, and case packing were all matched to the same target rate.
This guide covers what processing includes, which equipment categories matter, how integrated lines function, and where bottle-cleaning fits in.
Key Takeaways
- Treat your packaging line as one connected system, not a shopping list of separate machines
- Match equipment to container type, product properties, production rate, and changeover frequency first
- Budget for conveyors, controls, guarding, and inspection alongside the "main" machines
- Flag bottle-cleaning needs early if containers arrive dusty, reused, or need interior rinsing before fill
What Food and Beverage Processing Includes
Food and beverage processing spans dairy and juice processing, brewing and distilling, bottled water and soft drink production, prepared and bakery foods, and shelf-stable or frozen goods.
Each starts with raw or semi-processed ingredients and ends with something ready for distribution. What "ready" means depends entirely on what's inside the package.
How Packaging Requirements Shift by Product
- Liquids (juice, dairy, spirits) typically need accurate fillers paired with compatible capping or corking equipment
- Carbonated beverages require pressure-compatible filling and sealing to prevent carbonation loss or container failure
- Viscous products (sauces, syrups, purees) often need positive-displacement pumps and fillers built for thicker flow
- Solid or semi-solid foods may need portioning, heat-sealing, or modified-atmosphere packaging to extend shelf life
Upstream conditions shape downstream equipment choices. A product's temperature, viscosity, particulates, carbonation level, allergens, and intended shelf life all influence filler design and container material. Those same factors determine how the line is configured from end to end.

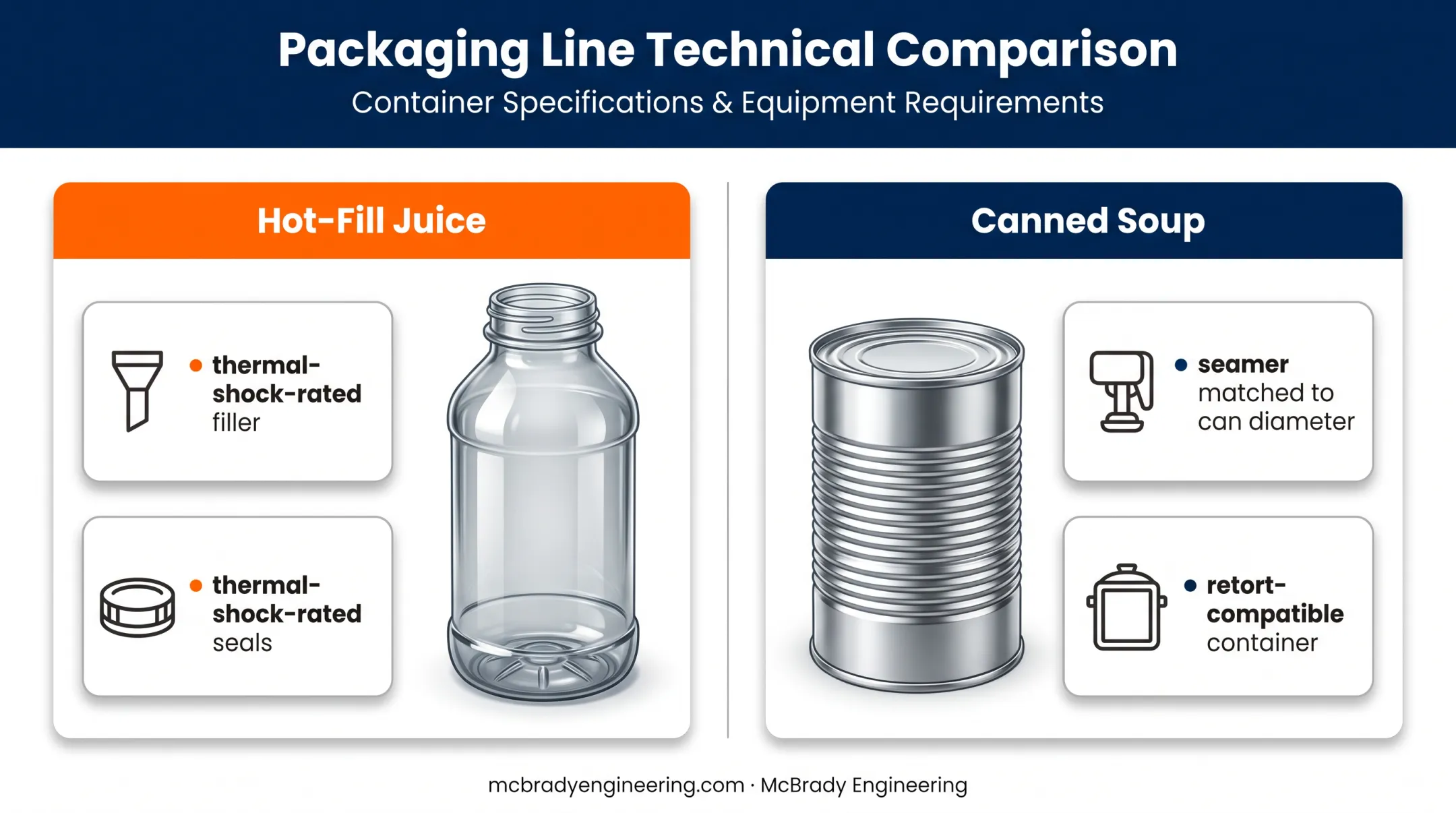

Two quick examples show the gap. A hot-fill juice line needs fillers and seals rated for thermal shock. A canned soup line needs a seamer matched to a specific can diameter and a retort-compatible container. Neither machine works on the other's line.
Packaging Equipment Used Across a Food and Beverage Line
Every packaging line follows a similar sequence, even when the specific machines differ by product.
The Container Journey
- Infeed – Depalletizers, unscramblers, or manual loading orient containers (bottles, cans, jars, pouches) and feed them into the line at a controlled rate.
- Cleaning or rinsing – Interior and exterior cleaning removes dust, debris, or residue before filling.
- Filling – Selected by product viscosity, foaming tendency, carbonation, required fill accuracy, and temperature.
- Closing – Cappers, corkers, seamers, lidders, or induction sealers matched to the closure type and required seal integrity.
- Inspection and labeling – Labelers, coders, checkweighers, vision systems, metal detectors, and X-ray inspection verify presentation and conformity.
- Secondary packing – Case packers, shrink wrappers, tray formers, and carton erectors group primary packages for shipment.
- Palletizing – Stretch wrappers and palletizers prepare loads for the warehouse or truck.
None of these stations work in isolation. Conveyors, accumulation tables, guide rails, change parts, guarding, sensors, and line controls aren't optional accessories. They're what keeps containers moving at the right pace between stations. Skip the accumulation table, and a 30-second filler stop becomes a line-wide stoppage.
Manual, Semi-Automatic, or Fully Automated?
The right automation level depends on volume, labor availability, SKU range, budget, and footprint, not on what looks most impressive in a brochure.
| Configuration | Best fit | Trade-off |
|---|---|---|
| Manual | Very low volume, frequent recipe or SKU changes | Labor-intensive, inconsistent rates |
| Semi-automatic | Growing producers, moderate SKU range | Operator still loads and unloads containers |
| Fully automated | High, consistent volume with few format changes | Higher upfront cost, less changeover flexibility unless designed for it |
Darlington Snacks doubled production while cutting packaging-line labor by roughly 40% after replacing manual case packing with an automated line. That gain came from matching two new bagging lines to one properly sized case packer, not from automation alone.
How Integrated Packaging Line Solutions Work
An integrated line coordinates every station, from handling and cleaning through filling, closing, labeling, inspection, packing, and palletizing, so one machine's speed or downtime doesn't take down the whole operation.
Line Balancing Prevents One Machine From Stalling the Rest
Filler speed, conveyor accumulation, changeover time, inspection points, cleaning cycles, and downstream packing rates all have to work together. If your case packer runs slower than your filler, bottles back up, and eventually the filler has to stop too.
Southern Tier Brewing saw production rise 30% after replacing its case packer, with bottle-size changeover time dropping from 45 minutes to under 10. The case packer, not the filler, had been the actual bottleneck.
General industry guidance suggests building 20-40% downstream speed headroom to recover from stops. Treat that as a planning starting point, not a guaranteed outcome for every line.
Format Flexibility and Sanitation
Manufacturers running multiple bottle shapes, sizes, materials, closures, or labels need:
- Change parts that swap quickly without tools
- Adjustable guides for different container widths
- Recipe-driven controls that recall settings by SKU
- Documented, repeatable changeover procedures
Hygienic design matters just as much. Product-contact surfaces need to be cleanable, with proper drainage, inspection access, and compatible materials. Raw and finished product paths should stay separated, and cleaning procedures should be documented, not just assumed.
Matching Automation to Your Operation
Controls tie everything together: sensors, programmable logic, operator interfaces, alarms, reject tracking, and production data, ideally feeding into plant-management systems upstream.
How much automation you need still depends on the operation:
- A small craft beverage producer running semi-automatic equipment needs flexibility and a low footprint more than raw speed
- A high-speed bottler needs tight line balancing, redundant critical components, and minimal planned downtime
- A co-packer running many SKUs needs fast changeovers and modular equipment that adapts job to job
Plan for growth too. Modular equipment, spare capacity, and maintenance access matter more once you've moved past your first expansion.
The Role of Bottle-Cleaning Equipment in Packaging Lines
Bottles don't always arrive ready for filling. Depending on where they come from, containers can carry shipping dust, residue, or debris that needs removal before they move further down the line.
Interior vs. Exterior Cleaning
- Interior cleaners and rinsers remove dust, debris, or residue from inside the bottle before filling, which matters most for containers that were stored, shipped in bulk, or reused.
- Exterior cleaners, rinse tunnels, and dryers wash, rinse, and dry the outside of the container, typically positioned before labeling since moisture or residue affects label adhesion.
Where each sits in the line depends on the container source and the product. A bottle fresh from a case may only need a quick dust-removal pass. A reused or bulk-shipped container may need a full interior rinse plus exterior cleaning before it's considered fill-ready.
Where McBrady Fits

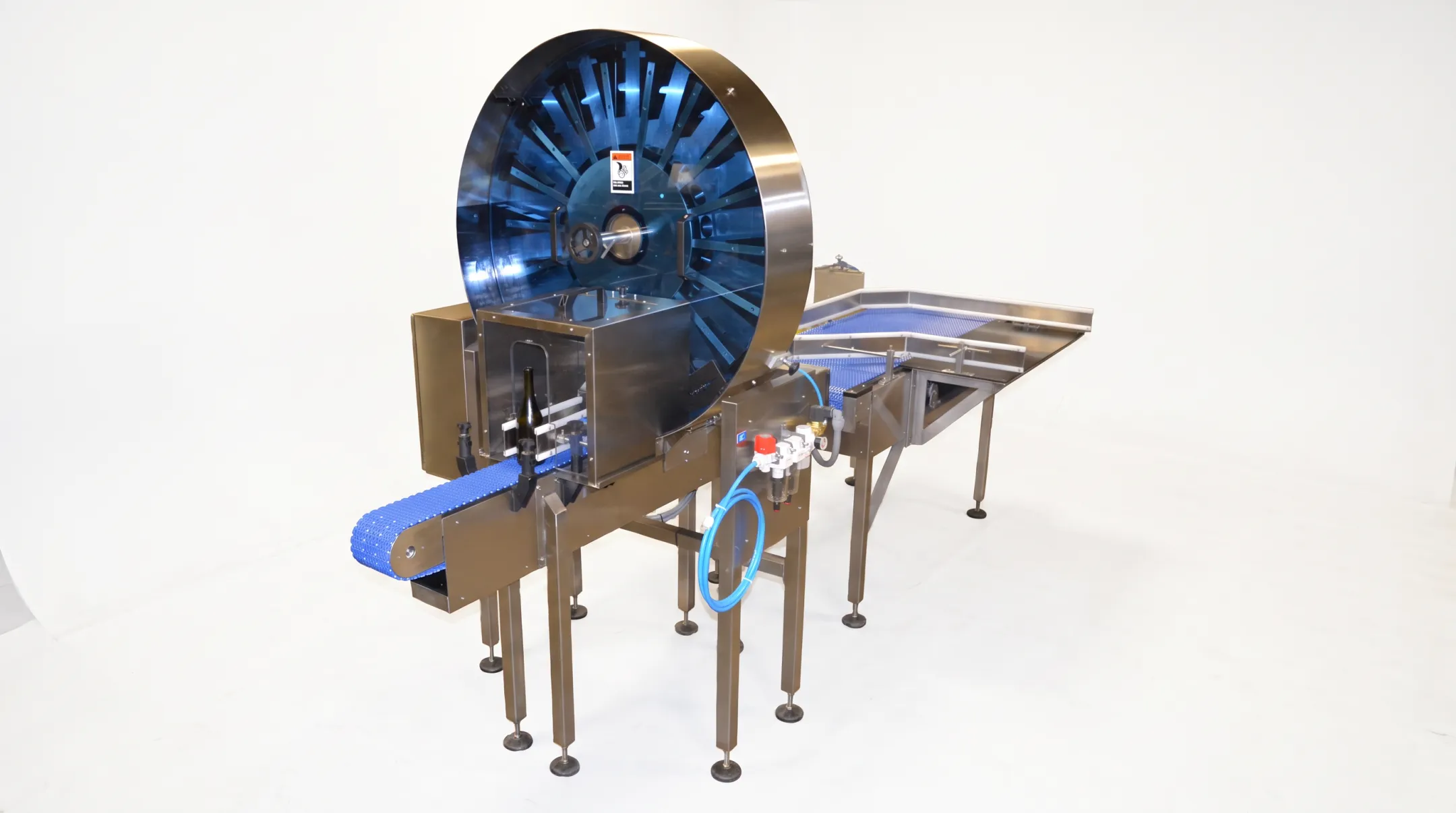

This is where McBrady Engineering has spent more than 60 years: compact interior and exterior bottle-cleaning machinery for food, beverage, pharmaceutical, and other container-cleaning applications. The lineup includes gripper-style interior cleaners rated up to 540 bottles per minute for an 8-ounce bottle, manual cleaners for lower-volume operations, bottle dusters for exterior debris removal, and exterior rinse tunnels that mount around an existing conveyor.
Equipment suitability isn't universal. It depends on:
- Container dimensions and material
- Required cleanliness standard
- Line speed and bottle orientation
- Available footprint
- Sanitation method (air, water, sanitizer, or a combination)
- How the unit needs to integrate with existing conveyors and controls
McBrady also builds custom engineering and fabrication solutions, including prototypes and one-off machines for applications that don't fit an off-the-shelf model. If your line needs a bottle-cleaning module built around unusual container geometry or a specific sanitation method, reach out to McBrady Engineering at sales@mcbradyengineering.com before you finalize the rest of your specification.

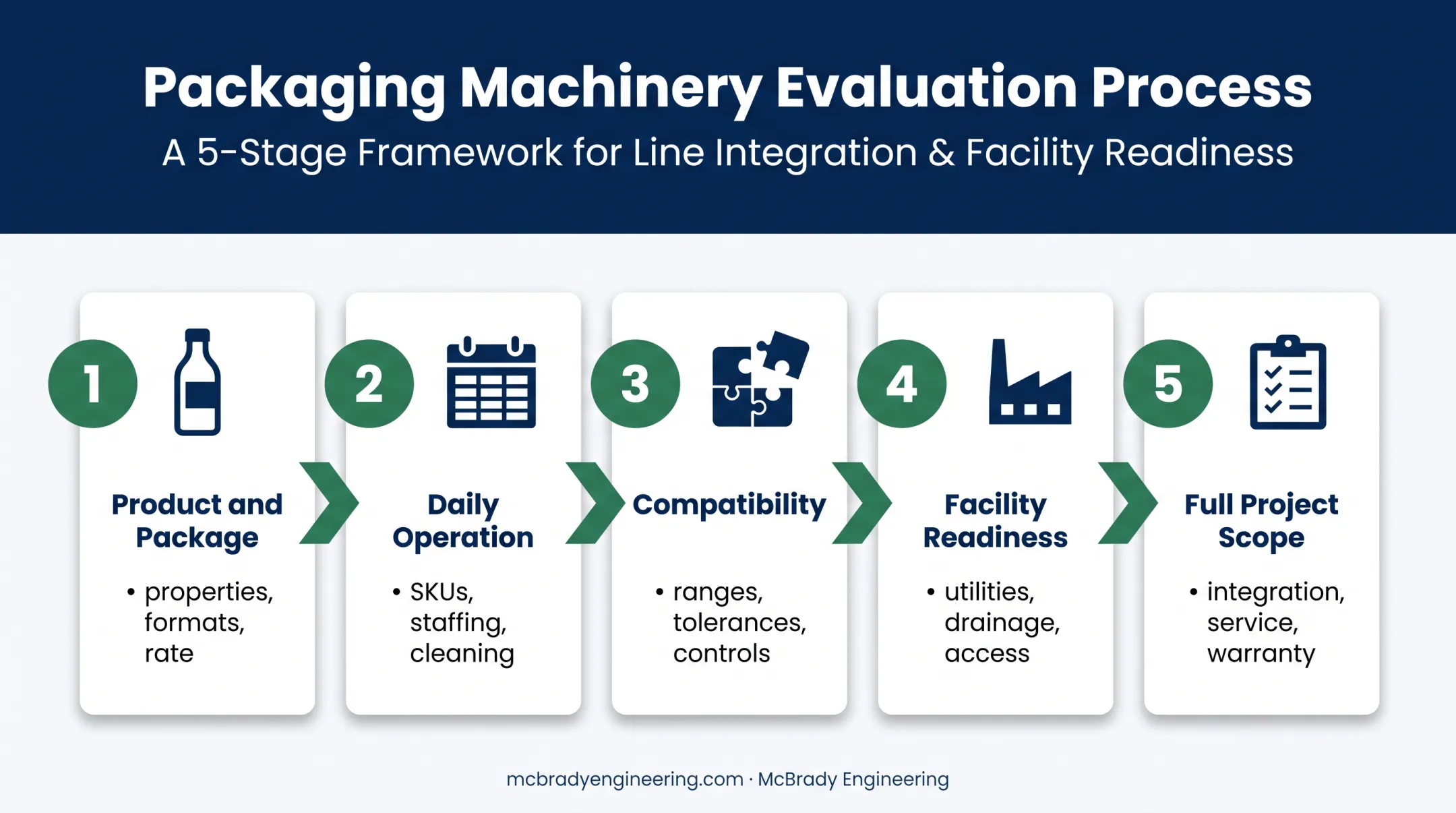

How to Select and Specify Packaging Equipment
Specifying equipment correctly starts long before you call a supplier.
Start With Product and Package
Nail down the basics first:
- Product characteristics (viscosity, carbonation, particulates, temperature)
- Container material, dimensions, and closure type
- Label format and case configuration
- Storage conditions and intended shelf life
- Required production rate, including peak demand
Then define how the line will run day to day:
- Production hours and peak demand windows
- SKU count and changeover frequency
- Staffing level and automation targets
- Cleaning cycles, quality holds, and reject handling
- Planned maintenance windows
Evaluate Equipment Compatibility and Performance
Ask suppliers for documentation, not just marketing claims:
- Operating ranges and container-format limits
- Fill or seal tolerances
- Changeover procedures and expected downtime
- Cleaning requirements
- Line-control architecture
- Acceptance-test criteria
Facility and utility requirements get overlooked too often. Confirm these before equipment arrives, not after:
- Electrical supply, compressed air, water, and steam
- Drainage and ventilation
- Floor loading, ceiling height, and access routes
- Safe maintenance clearance
Compare the Full Project Scope
A lower machine price can hide a higher total cost. Compare proposals on:
- Engineering and integration
- Conveyors, controls, and guarding
- Installation and commissioning
- Training and documentation
- Spare parts and preventive maintenance
- Service response and warranty coverage
Ask for documented data on changeover time, downtime, labor, or throughput gains rather than accepting projected savings at face value. The labor and changeover results cited earlier in this article are named, documented outcomes. Request that same level of evidence from any supplier you evaluate.
Pre-purchase checklist:
- Product and package specifications confirmed
- Required throughput and future capacity defined
- Container and SKU formats mapped out
- Sanitation and cleaning procedures documented
- Inspection requirements set
- Utility and facility readiness verified
- Controls and data integration planned
- Safety and guarding addressed
- Service, spare parts, and documentation included
If your line needs a bottle-cleaning module, custom machinery, or a one-off fabrication solution coordinated with the rest of the packaging line, McBrady Engineering works from prototypes through full production units. Talk with the team before you lock in the rest of your line specification.
Frequently Asked Questions
What is food and beverage processing?
Food and beverage processing is the transformation of raw ingredients into consumable products, covering processing, preservation, packaging, storage, and distribution so the final product reaches consumers safely.
What are five examples of food and beverage processing?
Common examples include dairy processing, beverage bottling, meat or poultry processing, bakery production, and fruit or vegetable processing. Each uses different equipment suited to its specific product and package format.
What equipment is needed for a food and beverage service?
It depends on whether you're running a processing plant, bottling facility, food-service kitchen, or packaging operation. Typical categories include preparation, refrigeration, processing, filling, cleaning, packaging, and inspection equipment.
How do I choose equipment for a food and beverage packaging line?
Start with product properties, container formats, and required production rate. Then factor in SKU changes, sanitation needs, inspection requirements, available utilities, system integration, service support, and future expansion.
Why is bottle-cleaning equipment used in beverage packaging?
Bottle cleaners remove interior or exterior dust, debris, or residue before filling or labeling. The right equipment depends on container type, required cleanliness standard, and how the rest of the line is configured.
