Packaging Line Conveyors

The available equipment includes bottle-handling conveyors, four-belt unscrambler and single-filer systems, high-speed belt conveyors, and table-top conveyors. Product information specifically identifies configurations for unscrambling containers, creating single-file flow, organizing bottles, and integrating equipment into new or existing bottling lines.

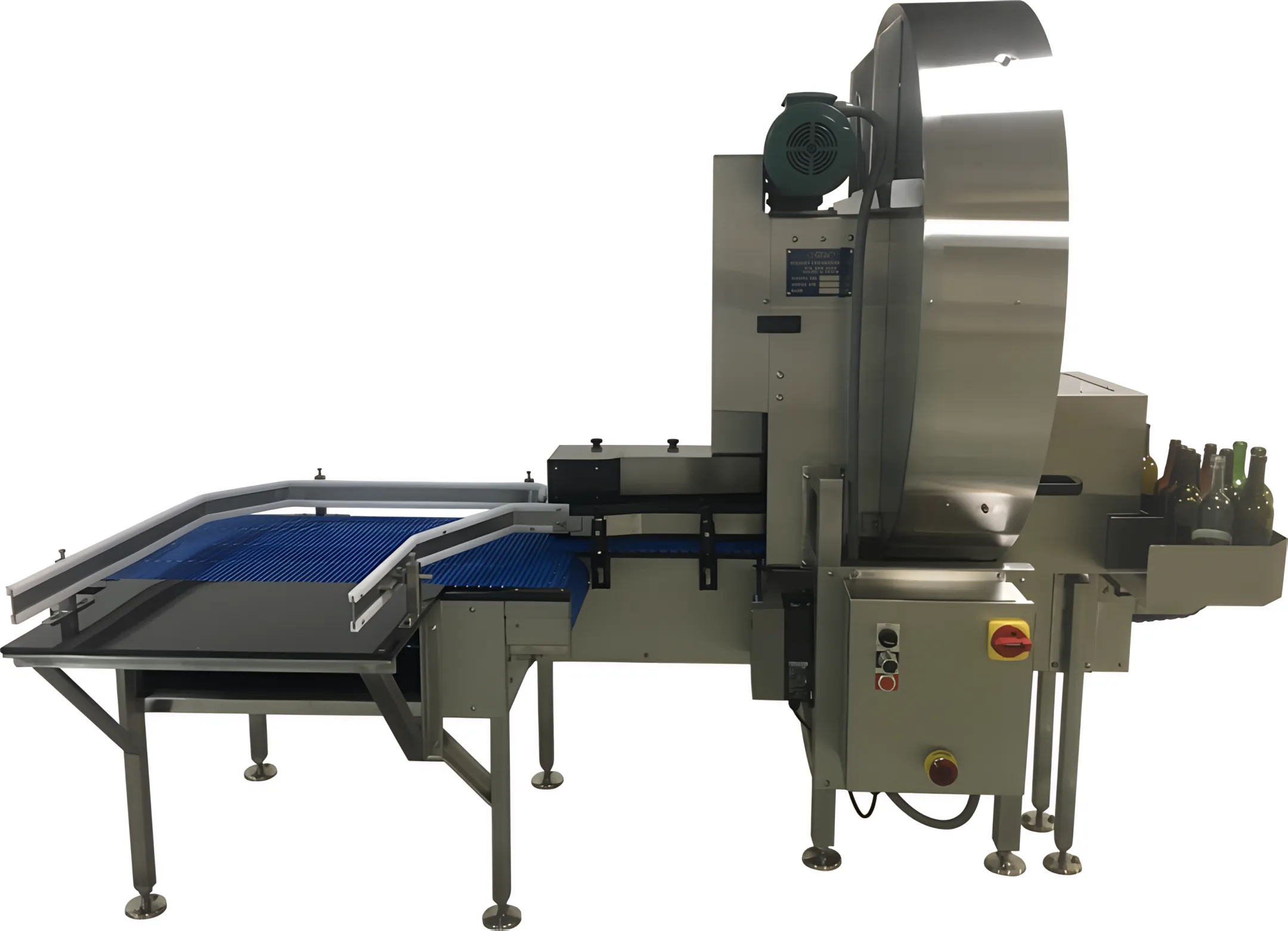

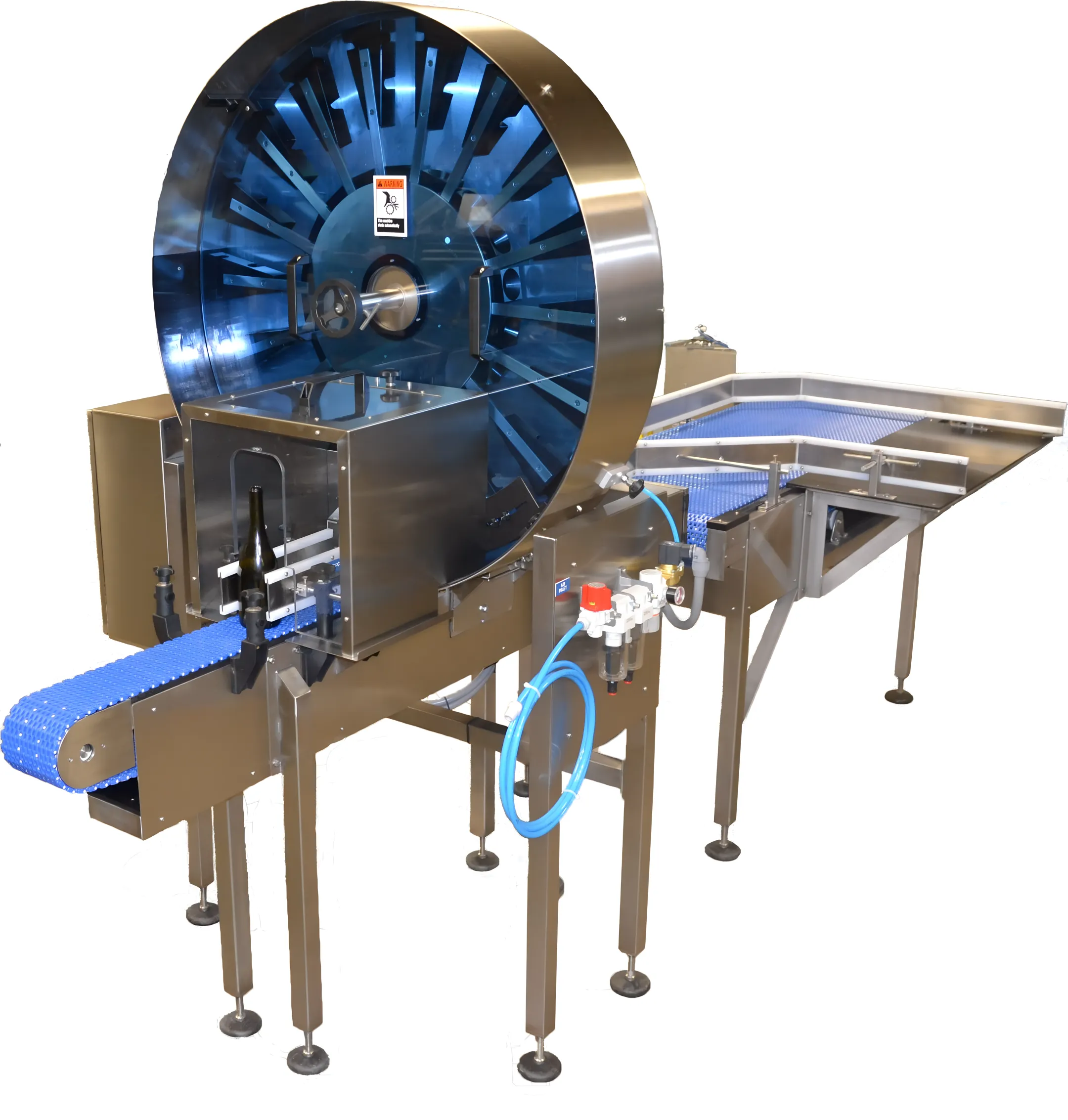

Yes. The 4-Belt Unscrambler/Single Filer can integrate into an existing bottling line or be supplied with a McBrady bottle cleaner. Right- or left-hand discharge, adjustable height, guide rails, and customizable length support layout-specific integration.

Three progressively moving belts separate bottles, while a fourth reverse belt removes excess containers and recirculates them back into the queue. This arrangement supports single-filing while reducing the pressure that can contribute to bottle jams and unstable flow.

The 4-Belt Unscrambler/Single Filer uses a Type 304 stainless steel frame or construction with FDA-approved plastics. Its conveying hardware includes Delrin table-top chain belt conveyors, and guide rails are included. Confirm material documentation and application compatibility with McBrady for your process.

The 4-Belt Unscrambler/Single Filer is customizable to nearly any desirable length, including an L-shaped dump table for manual loading. Right- and left-hand discharge options are available, and the electrical configuration is provided to customer specifications.

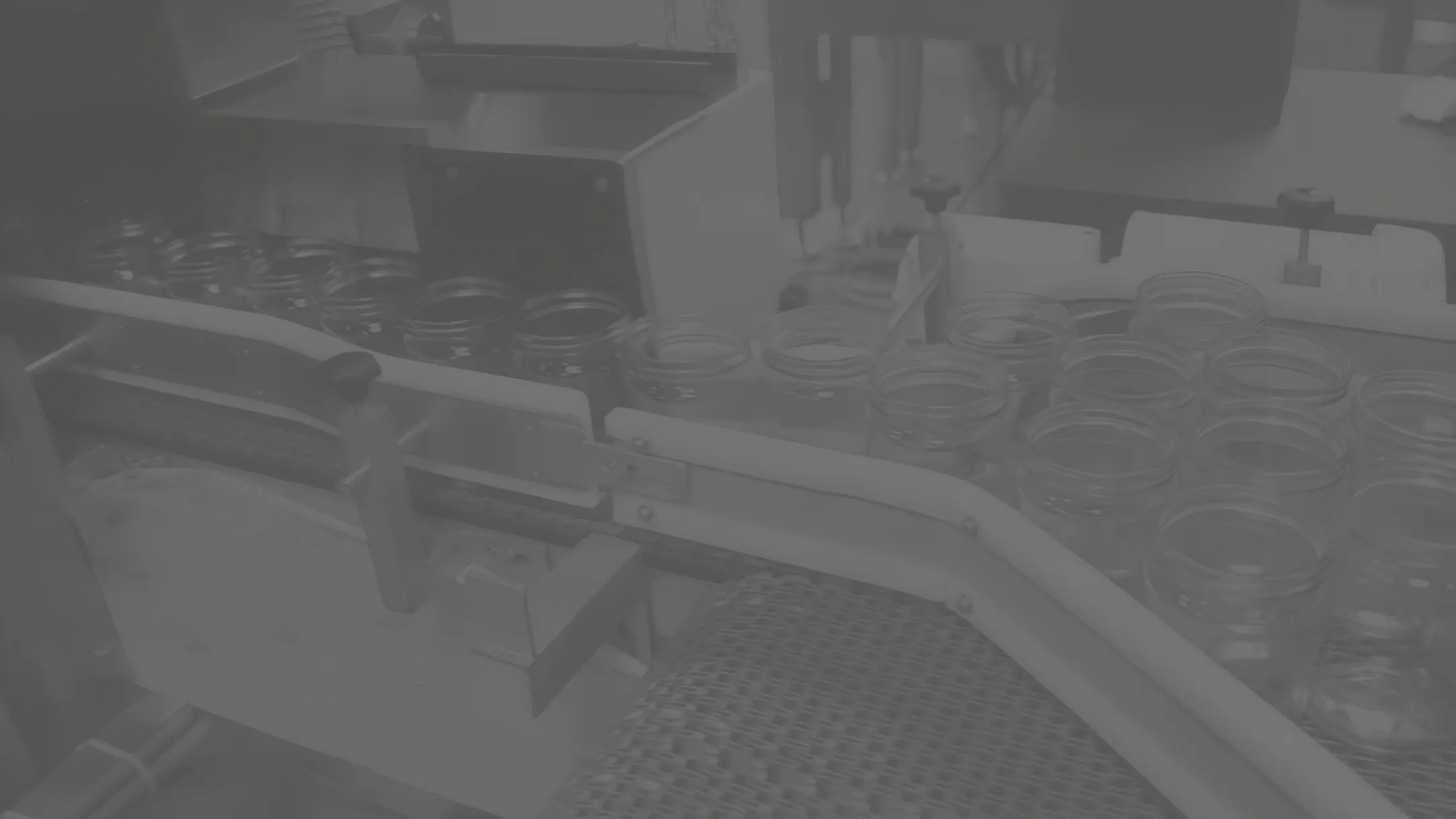

Applications include food and beverage bottling lines, pharmaceutical container processing, beverage production, bottle preparation before cleaning or filling, chemical and household product filling, nutraceutical processing, contract packaging, and packaging OEM integration. The appropriate configuration depends on the container, line layout, and downstream equipment.
