Conveyor Systems for Bottles

A bottle conveyor system moves containers between production stages while helping maintain an organised flow. McBrady’s four-belt unscrambler separates bulk bottles and converts them into a single-file stream. Its extended discharge belt can connect directly to a McBrady cleaner, while standalone configurations can integrate with an existing bottling line. The equipment is designed for conveying and single-filing rather than cleaning.

Three progressively moving belts separate bottles as they enter the machine. A fourth reverse belt removes excess bottles from the flow and recirculates them back into the queue. This helps reduce pressure build-up and supports a steadier single-file stream. Actual performance depends on the container and line configuration, so the application should be reviewed with McBrady before specification.

Yes. The four-belt unscrambler can be sold separately for integration into an existing bottle line or supplied with a McBrady bottle cleaner. Right- and left-hand discharge options, adjustable height, included guide rails, and customisable length help accommodate different layouts. Confirm the container envelope, controls, safety provisions, and interface requirements with McBrady before ordering.

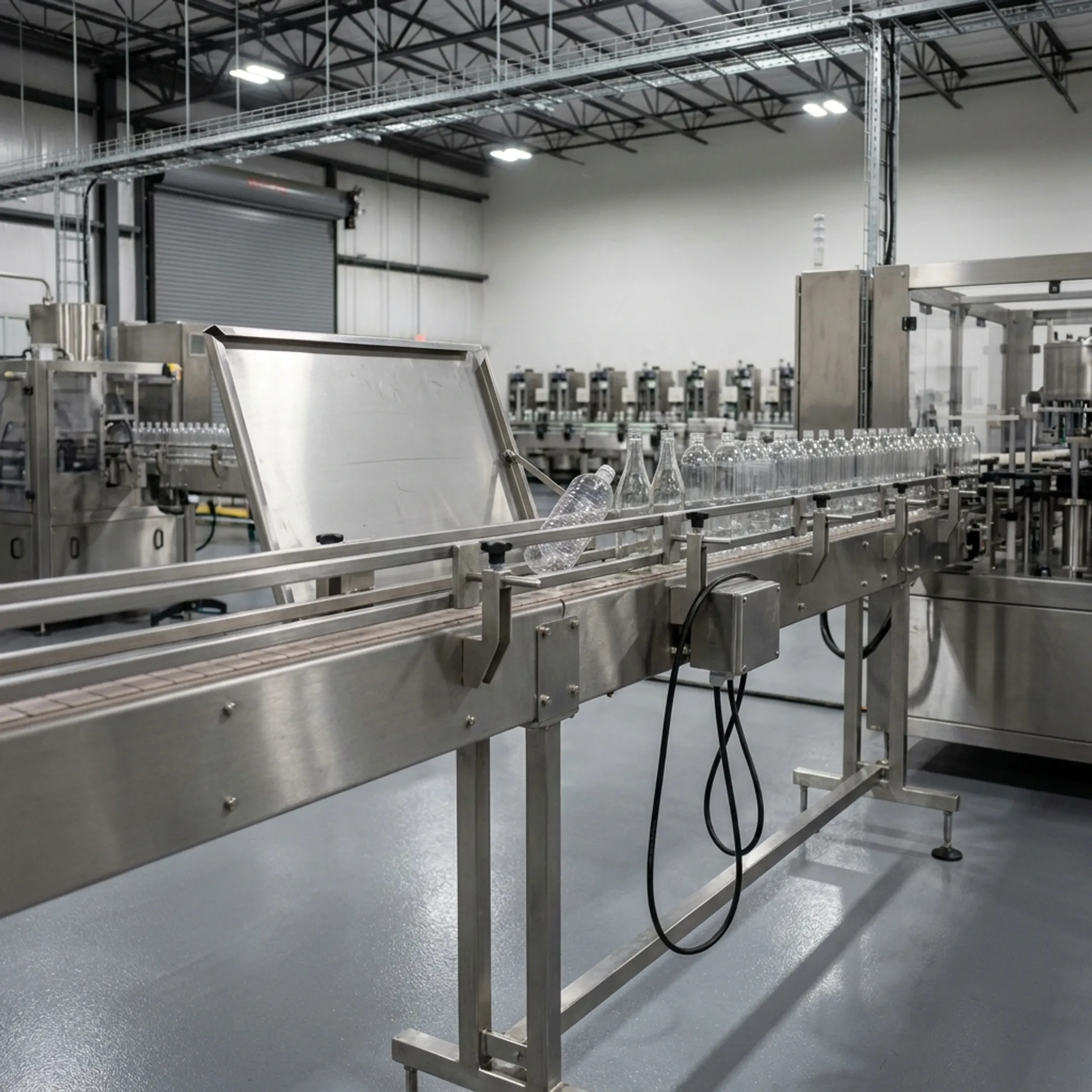

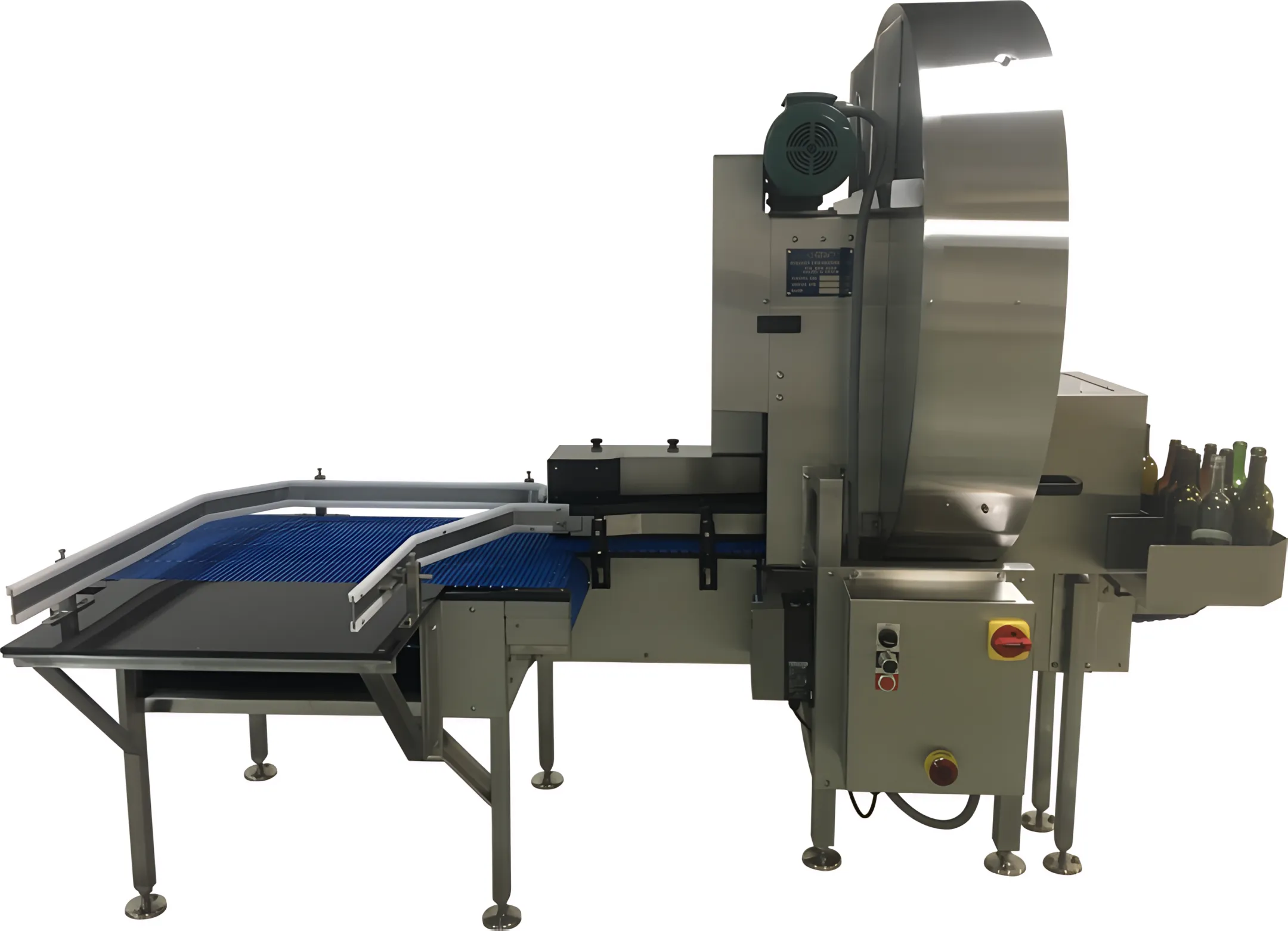

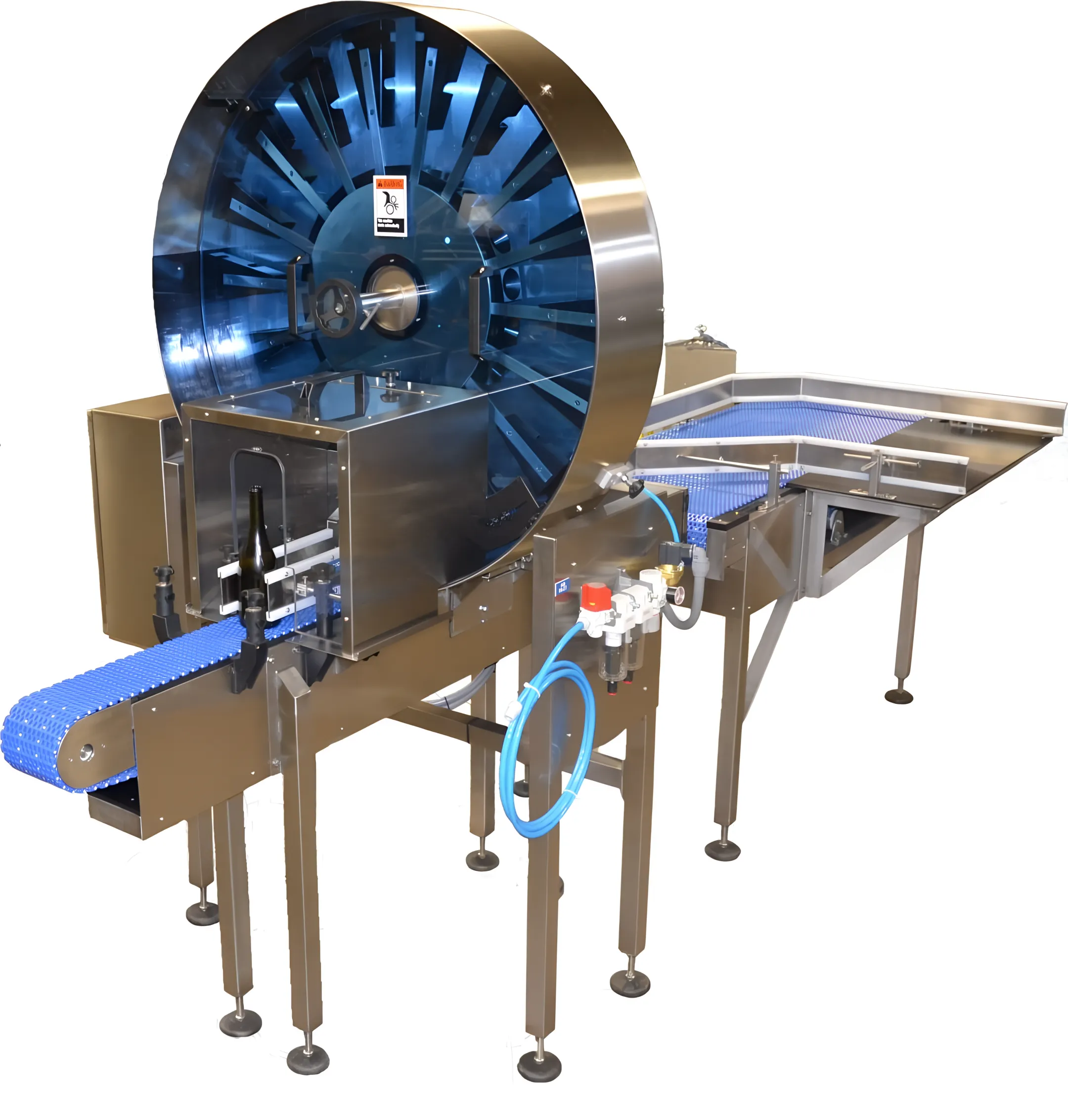

Applications identified for these systems include food and beverage bottling, pharmaceutical container processing, nutraceutical packaging, chemical and household-product filling, contract packaging, and packaging OEM integration. Typical uses include preparing bottles for cleaning or filling, feeding downstream production equipment, and organising containers on new or existing production lines.

Published configurations use a Type 304 stainless-steel frame, FDA-approved plastics, and Delrin table-top chain belt conveyors. Guide rails are included, and the dump station is plastic-lined. These material statements should not be treated as a certification or regulatory listing. Buyers should request the material documentation required by their own sanitation, quality, and compliance programmes.

The four-belt unscrambler is customisable to nearly any desirable length and can include an L-shaped dump table for manual loading. Right- and left-hand discharge options are available, and machine height can be adjusted using ball-joint feet. Electrical configuration is provided to customer specifications. McBrady should confirm the final dimensions, controls, guarding, and interface details for each application.
