Line layout design is the planned arrangement of equipment, workstations, conveyors, storage, operators, inspection points, and material routes that move containers from incoming supply through finished packaging. It's the blueprint that decides whether your line flows or fights itself.
This article compares common layout types, walks through packaging-specific design factors, and lays out a practical process for building a safer, cleaner, more efficient container-handling flow.
Key Takeaways
- Pick a layout based on container type, volume, SKU mix, and sanitation needs, not shape alone
- Build one-way flow for containers, materials, rejects, and finished product; separate people from forklift traffic
- Test every layout with process maps, movement studies, and a mockup or simulation before permanent install
- Treat cleaning, rinsing, washing, drying, and inspection as connected flow steps, not standalone equipment purchases
What Line Layout Design Means for Packaging Operations
"Line" refers to the connected sequence of operations a container passes through. "Layout" describes how those operations are physically arranged and related to one another on the floor. Get the sequence right but the layout wrong, and you still end up with crossed paths and wasted steps.
Four Layout Families, Many Physical Shapes
Operations management generally recognizes four layout types: product (or line) layout, process (or functional) layout, cellular layout, and fixed-position layout. In a fixed-position layout, the product stays put and workers move to it instead of the reverse.
Packaging facilities rarely use just one. Most combine these concepts into hybrid or modular arrangements, often built in an I-, U-, S-, or L-shaped footprint.
Why Packaging Lines Need Extra Thought
A good layout aims for smooth container flow, minimal handling, controlled accumulation, accessible equipment, and efficient floor space use. Packaging lines add complications general assembly lines don't face:
- Container fragility - glass and thin-wall plastic scuff, tip, and crack during poorly designed transfers
- Cleanliness and residue - liquid, powder, or product film on containers changes how they're handled and cleaned
- Frequent changeovers - shifts between bottle sizes and shapes
- Label access and orientation - correct presentation at labeling and transfer points
- Washdown exposure - moisture and cleanup demands near wet-cleaning equipment
- Mix-up risk - SKUs, rejected units, and finished product need clear separation
Every design decision from here forward has to account for these realities, not just the equipment sequence.
How to Choose the Right Packaging Line Layout
Start with the four core layout types and see where your operation fits.
- Product or line layout - best for a defined sequence and consistent, higher-volume packaging flow
- Process or functional layout - useful when equipment serves varied products and routing changes often
- Cellular layout - groups equipment around a container family or dedicated packaging cell
- Fixed-position layout - uncommon for bottle handling, but relevant for large or immovable vessels and specialized stationary equipment
Comparing I, U, L, and S Shapes
| Shape | Strength | Watch for |
|---|---|---|
| I-line | Straightforward one-direction flow, clear access | Long travel distances, larger footprint |
| U-line | Brings infeed and outfeed closer, supports compact staffing | Needs careful replenishment and access planning |
| L-line | Fits building constraints or connects perpendicular areas | The turn can complicate transfers and visibility |
| S-line | Uses long floor areas efficiently | Requires deliberate forklift crossings and accumulation at turns |
Packaging-line designers compare these shapes against actual building constraints, access requirements, and material routes rather than picking a shape first and forcing the equipment to match it.
What Actually Drives the Decision
Weigh these factors before settling on a configuration:
- Container dimensions, weight, material, and fragility
- Required line speed and batch size
- SKU count and anticipated future product introductions
- Building columns, doors, floor loading, ceiling height
- Utilities, drainage, and washdown zone locations
- Maintenance clearances around existing equipment

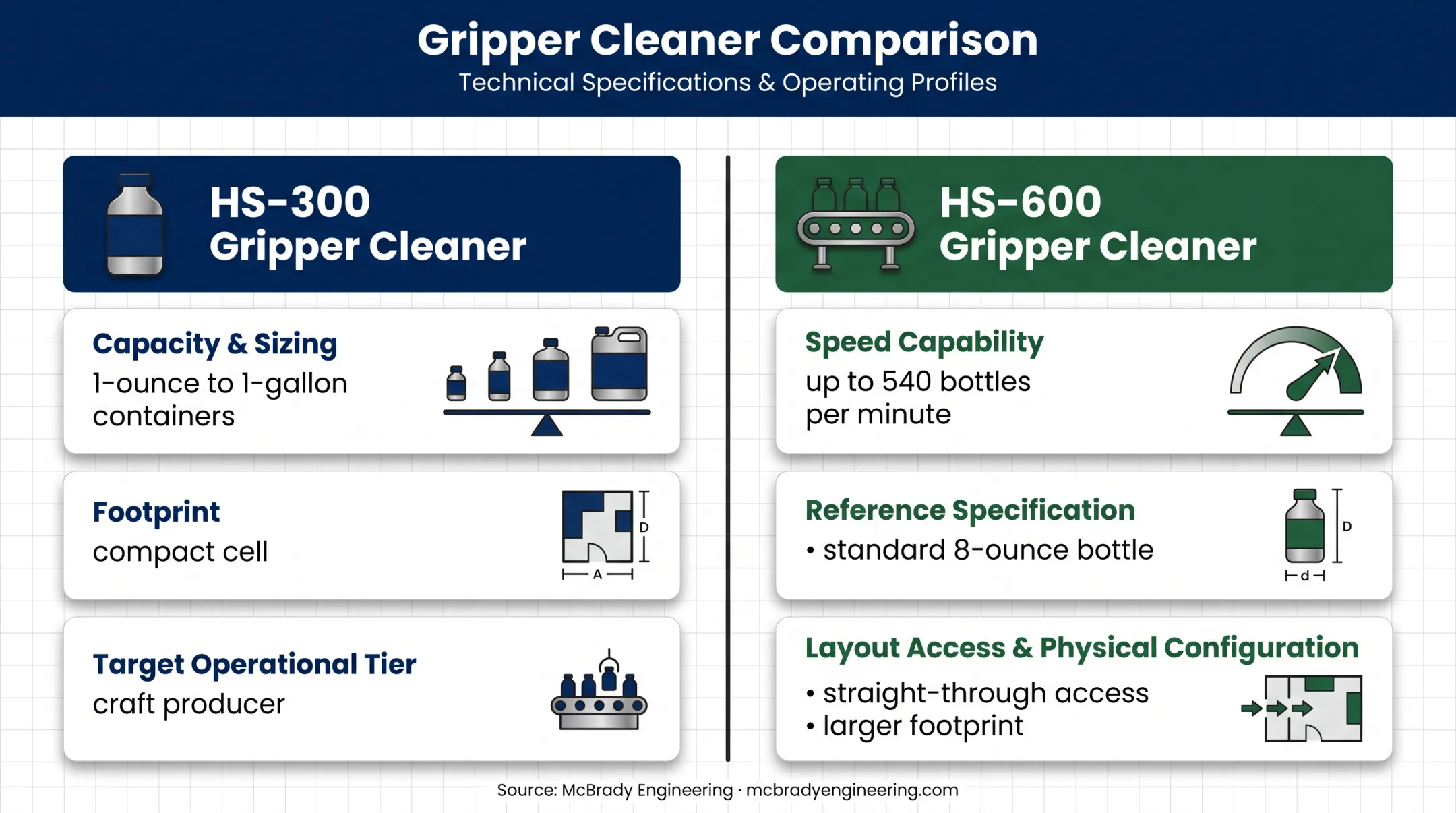

A small-batch brewery filling a few hundred cases a week has different priorities than a high-volume water bottler running 24/7. McBrady's HS-300 gripper cleaner, built for 1-ounce to 1-gallon containers, fits comfortably into a compact cell for a craft producer.
A line running an HS-600, rated up to 540 bottles per minute for a standard 8-ounce bottle, needs the straight-through access and larger footprint of a product layout. Match equipment capability to volume reality.
Scoring the Options
A weighted decision matrix helps when two or three layout concepts look equally reasonable on paper. Score each candidate against:
- Throughput and changeover time
- Flexibility and room for expansion
- Sanitation, safety, and operator access
- Footprint and maintenance access
Weight the criteria that matter most to your product, then let the numbers break the tie instead of a gut call.
Designing Container Flow and Handling Into the Layout
Map the complete container journey before you place a single piece of equipment. Trace every stage from receiving or depalletizing through unscrambling, cleaning, filling, capping, inspection, labeling, case packing, palletizing, and finished-goods transfer.
Mark every point where containers are accumulated, redirected, picked up, or handled by a person.
Build One-Way Flow
A clean, one-directional path prevents the mix-ups that cause recalls and rework:
- Keep incoming or unclean containers physically separate from cleaned containers and finished product
- Never let rejected or suspect containers re-enter the acceptable product stream
- Build controlled return routes for reusable containers, change parts, and packaging materials
Food manufacturers have regulatory backing for this approach. FDA rules for food plants call for separating contamination-prone operations by location, time, partition, or airflow. That principle applies whether or not your product falls under FDA jurisdiction.
Define the Borders of the Line
Decide exactly where full containers, empty containers, caps, labels, cartons, pallets, and waste get delivered and removed. Position consumables at the point of use without blocking operators, guarding, maintenance access, or emergency routes.
Assign a replenishment method and an owner for each material; vague ownership is how carts end up parked in walkways.
Size Accumulation to Real Data
Buffers absorb short stoppages so one jam doesn't shut down the whole line. Size them using demand, cycle time, equipment reliability, and actual operating data, not a round number.
A documented pharmaceutical packaging case cut a 300-unit buffer to 150 units with no measurable drop in overall equipment effectiveness. That result shows how much excess buffer capacity can hide in a line that was never properly measured. Don't let accumulation become a permanent patch over a bottleneck you haven't actually fixed.
Treat Cleaning Equipment as Part of the Flow
Interior cleaning, exterior washing, drying, and rinsing each belong at a specific, validated point in the sequence, not wherever floor space happened to be free. McBrady Engineering builds compact cleaning equipment to fit tight line footprints:
- Model #22 Bottle Duster: up to 100 bottles per minute in as little as 9 feet of line space
- Model #42 Exterior Rinse Tunnel: rinses and dries up to 150 bottles per minute in roughly 10 feet
Evaluate cleaning equipment as a core part of the layout from the start, not as an afterthought bolted on once everything else is placed.

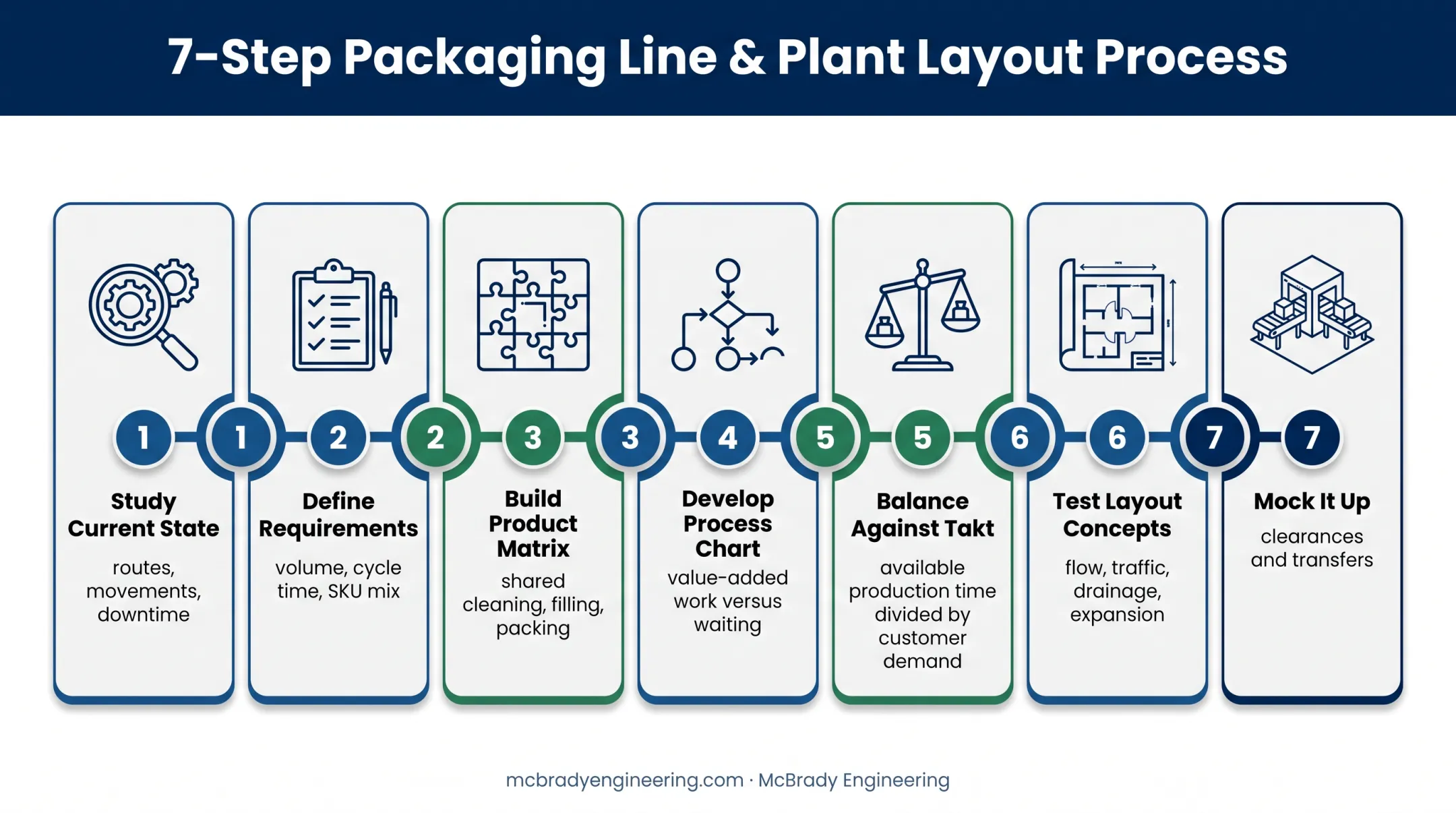

A Step-by-Step Process for Designing an Efficient Packaging Line Layout
Skipping steps here is how facilities end up redoing a six-figure installation eighteen months later.
- Study the current state. Document existing routes, equipment locations, operator movements, and downtime causes. A spaghetti diagram and direct observation reveal crossing flows that nobody notices day to day.
- Define demand and product-family requirements. Gather production volumes, cycle-time needs, container dimensions, SKU mix, and changeover frequency.
- Build a product-family matrix. Identify which containers share cleaning, filling, and packing steps to decide between one line, multiple cells, or a hybrid.
- Develop a process chart. Separate value-added work from transport, waiting, and rehandling.
- Balance the line against takt time. Takt is available production time divided by customer demand. Compare operator workload against takt on a visual workload chart that includes walking, replenishment, and quality checks.
- Create and test multiple layout concepts. Evaluate each option against flow, operator reach, traffic, drainage, and future equipment needs.
- Mock it up. Use a scaled floor plan, digital model, or temporary trial to test clearances and transfers before anything gets bolted down.
Design Checks for Safety, Quality, and Changeovers
A layout isn't finished once the equipment is placed. Run it through these checks before approving any permanent installation.
Protect the Transfers
Every handoff between machines is a chance to tip, scuff, or contaminate a container. Select guides, conveyors, and gripping surfaces based on the container's material and geometry. McBrady's HS-600 and HS-300 gripper cleaners use soft rubber gripper belting with soft starts and soft stops to reduce impact during transfer and cleaning.
Build in Human Factors
- Keep controls, inspection points, and tools within safe reach
- Reduce twisting, lifting, and long walking routes
- Provide safe access for clearing jams and performing maintenance without shutting down adjacent stations
Plan for Fast, Accurate Changeovers
Locate change parts, guides, and recipes where they can be reached without disrupting neighboring operations.

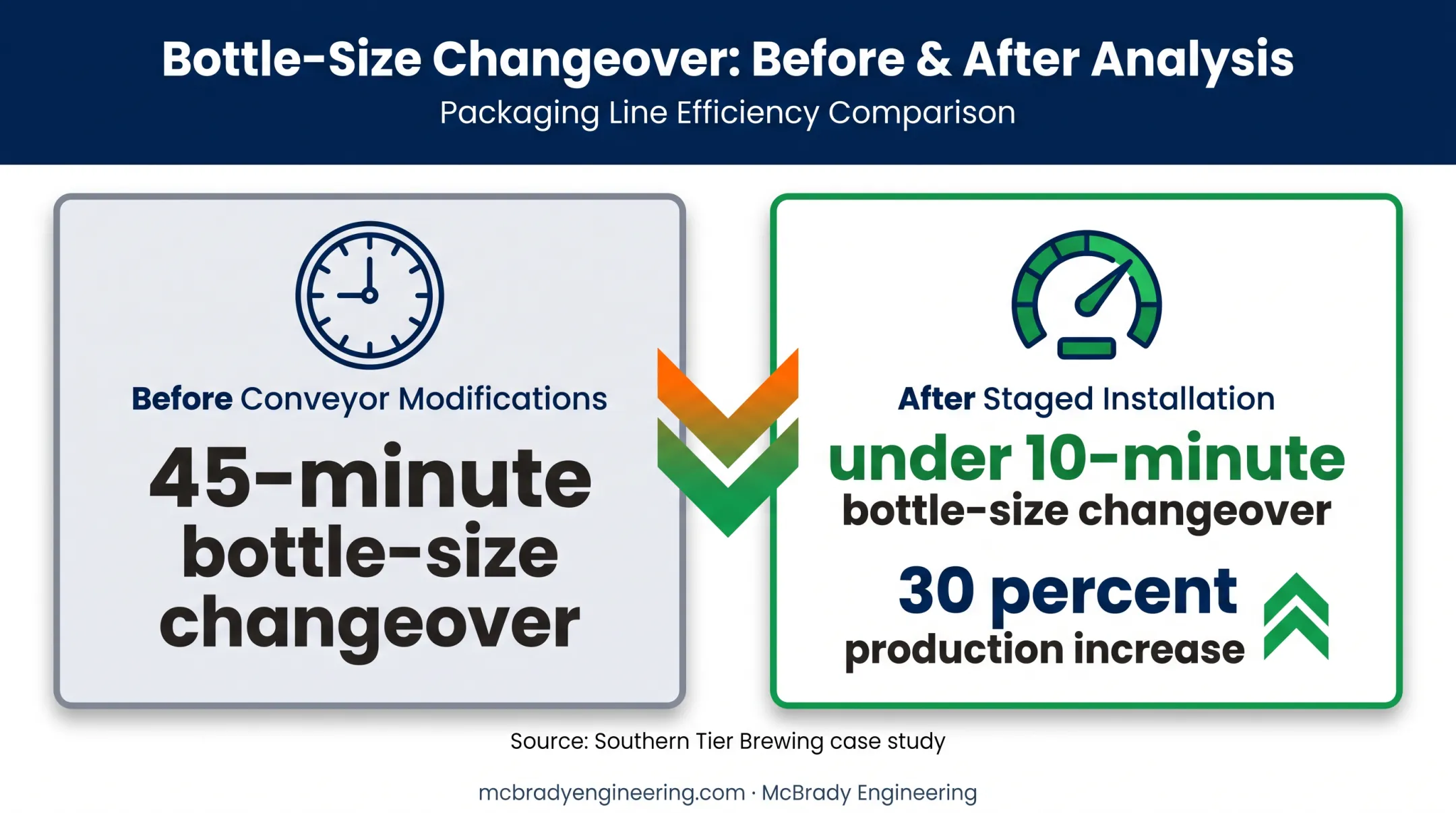

Southern Tier Brewing's case packer bottleneck shows the payoff. After conveyor modifications and a staged installation, the plant cut bottle-size changeover from 45 minutes to under 10 and raised production by 30 percent. A well-planned layout can deliver that kind of return.
Validate Before You Commit
Run a pilot where practical. Track these metrics against a baseline:
- Throughput
- Unplanned stops
- Container damage
- Changeover duration
Standardize what works through updated drawings, labels, and training. Then walk the floor with operators, maintenance, and sanitation staff after startup. They'll catch problems the design model couldn't show.
For unusual container shapes or cleanliness requirements that off-the-shelf equipment can't handle, McBrady Engineering's custom fabrication team builds prototypes and one-off solutions. Work runs from 3D modeling through finite element analysis, with pharmaceutical-grade welding available when the application calls for it.
Build the Layout Around the Container Flow
An efficient packaging layout isn't the shortest arrangement of machines you can draw on paper. It's a coordinated system that controls:
- Container and people movement
- Material supply and finished-product flow
- Cleaning, inspection, and changeover
Compare several layout concepts. Validate them with real operating data and a physical or digital mockup. Bring production, quality, sanitation, maintenance, and logistics into the conversation before anything gets installed permanently.
Treat container-cleaning and handling equipment as part of the line design from day one, especially when you're working with specialized bottle formats, strict cleanliness requirements, or a floor plan that doesn't leave much room to spare.
Frequently Asked Questions
What are the four types of layouts?
The four core types are product (or line), process (or functional), cellular, and fixed-position layouts. Packaging operations often combine these into hybrid or modular arrangements rather than relying on just one.
What does "line" mean in design?
A line is the connected sequence of operations, equipment, workstations, and material movements used to move a container from input to finished output. Layout describes how that sequence is physically arranged.
What is a layout example?
A typical packaging layout moves containers from depalletizing to cleaning, filling, capping, inspection, labeling, case packing, and palletizing in a planned, one-way sequence.
How do you choose the right layout for a packaging line?
Base the decision on container type, production volume, SKU variation, equipment sequence, sanitation needs, operator access, available space, and future expansion plans. No single shape works for every operation.
How can a line layout reduce container handling problems?
One-way flow, properly sized accumulation, accessible replenishment, and protected transfers cut unnecessary handling. Separating reject routes and positioning cleaning equipment correctly prevents interruptions and mix-ups before they happen.
