Introduction
Bottles and containers rarely arrive at a filler, capper, or labeler in a usable position. They tumble off an unscrambler, slide down a conveyor, and land however gravity and friction allow.
Yet labelers need a flat panel facing the camera. Cappers need consistent spacing. Vision systems need a repeatable view of the same surface every time.
That gap between random container position and precise machine requirements is what an orienter system solves. It detects, rotates, or guides each container into the position a downstream process demands, ideally without slowing the line.
This article covers what orienter systems are, how they function mechanically, the main design approaches available, and a practical framework for selecting one for a real production line.
Key Takeaways
- Orienters position containers consistently for whatever process comes next on the line.
- The right method depends on container shape, weight, center of gravity, and required accuracy, not just speed.
- Orientation works alongside unscrambling, rinsing, cleaning, and inspection, not in isolation.
- Sanitation, washdown compatibility, and safeguarding matter as much as cycle time.
What Is an Orienter System for Bottle and Container Handling?
An orienter is equipment that sets a container's rotational position or facing direction before it reaches the next machine on a packaging line. It differs from three pieces of equipment people often confuse it with:
- A basic conveyor moves containers from point A to point B. It doesn't change their rotational position.
- A bottle unscrambler takes randomly jumbled containers from a bulk hopper and feeds them upright, in single file. It solves chaos, not direction.
- A container inverter flips a container through a set angle, such as 90 or 180 degrees, usually for draining or a specific process step rather than facing control.
An orienter's job is narrower and more specific: make sure a particular feature, such as a handle, seam, label panel, embossment, or opening, lands in the same spot every single time.
POSIMAT, for example, describes its GIRAMAT orienter as reorienting bottles after they've already passed through an unscrambler. That split is a reminder that unscrambling and orienting are often two separate steps on the same line, not one machine doing both jobs.
Why Inconsistent Orientation Creates Problems Downstream
When containers arrive facing random directions, several things tend to go wrong:
- Labels land crooked or on the wrong panel
- Vision inspection systems can't find their reference point
- Fillers and cappers struggle with asymmetrical bottles that don't seat predictably
- Jams increase as containers bump and rotate against guide rails
A round, symmetrical bottle often needs little more than spacing and alignment since every angle looks the same to the downstream machine. An oval bottle with a handle, or one with a printed front panel, is a different story. That handle has to face a specific direction before the labeler, every time, or the finished product looks wrong on the shelf.

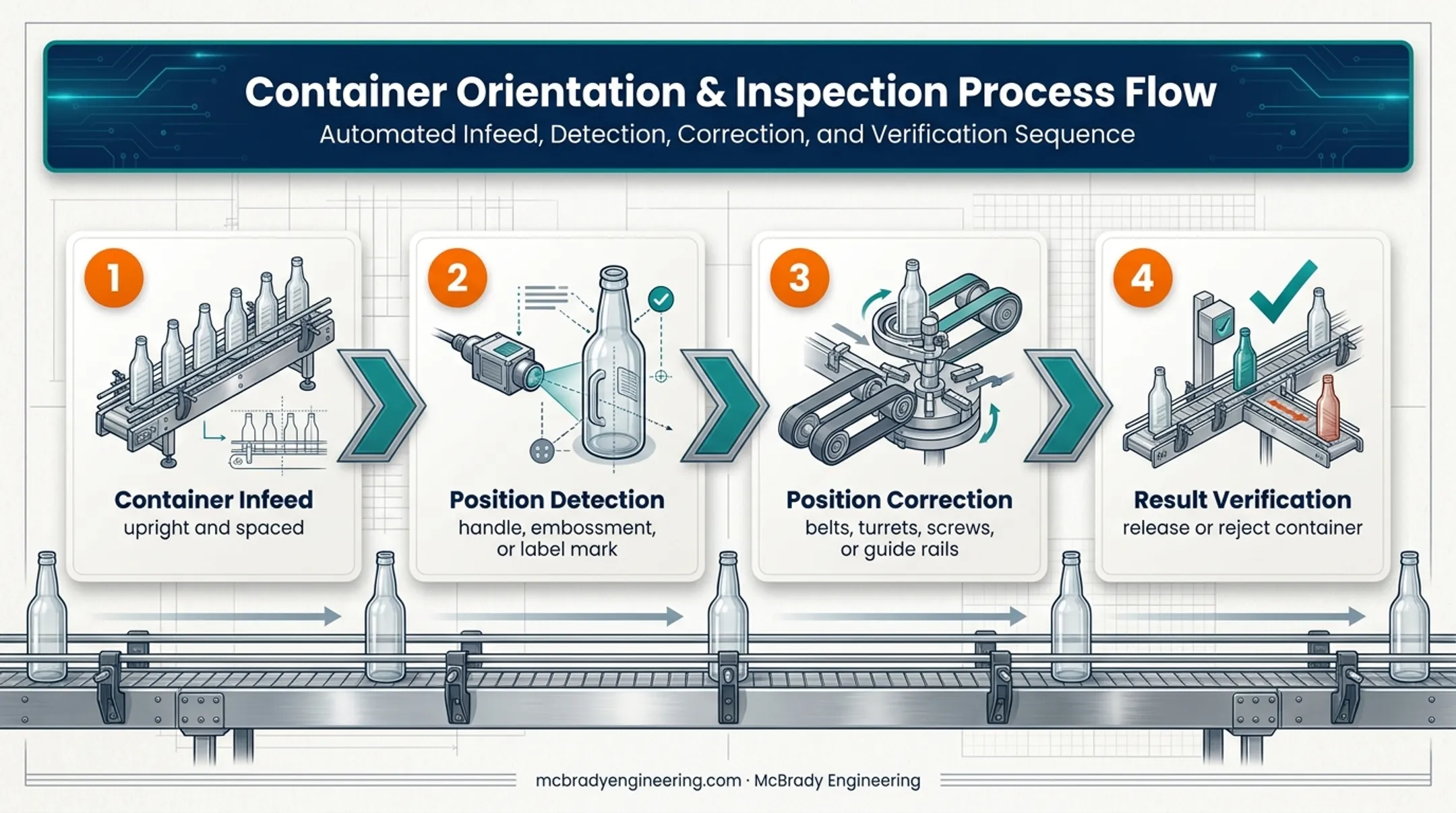

How Do Bottle Orienter Systems Work?
Most orienter systems follow a similar sequence, even though the mechanics vary by manufacturer and container type.
- Containers enter the orienting zone from an infeed conveyor, usually already upright and spaced.
- Sensors or mechanical guides read the container's current position. This might be a photoeye detecting a handle silhouette, a proximity sensor, or a camera trained on an embossment or label mark.
- Rotating or guiding components correct the position. Depending on the design, this could be independently driven belts, rotary turret heads, timing screws, or fixed guide rails working with a starwheel.
- The system verifies the result before releasing the container to the next machine, and in some designs, rejects containers that can't be oriented reliably.
Common Mechanical Approaches
Different manufacturers document different methods for the actual positioning step:
| Method | How it works |
|---|---|
| Driven belts | Independently controlled belts rotate the bottle to the detected target position |
| Rotary units | Containers are lifted or diverted off the main conveyor, rotated, then returned to the line |
| Timing screws | Paired or shaped screws turn asymmetrical containers as they pass through |
| Starwheel and guide | A fixed guide plate combined with a starwheel turns containers under mechanical control, without motors |
| Camera-guided turret | A trained vision system locates a reference feature; a rotary unit aligns the bottle before it reaches the labeler |
Speed and contact force matter as much as the mechanism itself. An orienter moving too aggressively can scuff glass, deform plastic, or tip lightweight containers. Too gentle, and it can't overcome momentum fast enough to keep pace with the line.
A Real-World Example
A documented installation at Jim Beam illustrates the mechanics well. A Krones rotary orienter used a camera to locate the bottle's handle, feeding that data to a PLC that controlled the rotating mechanism until the handle reached the correct position for labeling.
The original setup needed extra lighting adjustments because glass clarity and glare interfered with camera readings. That kind of field troubleshooting rarely shows up on a spec sheet, but it is common when commissioning real equipment.
Types and Design Considerations for Orienter Systems
Choosing a mechanical approach starts with the container, not the catalog. Here's how the main categories tend to handle different container profiles:
- Guide-based and starwheel systems work well for sturdy, stable containers moving at moderate speeds; they involve fewer powered components but offer less flexibility for frequent SKU changes.
- Belt or wheel rotation systems handle a wider range of shapes, including asymmetrical bottles, and can often be reprogrammed for different containers without mechanical swaps.
- Timing screws suit containers that need turning during conveyance rather than at a dedicated station, often integrated directly into a filling or capping line.
- Vision-guided orientation adds flexibility for complex or unusual embossments and panel designs, at the cost of more sensitive setup and lighting requirements.
Design Factors That Actually Matter
Before specifying any system, document:
- Container dimensions, material, and wall rigidity
- Weight and center of gravity, especially for tall or top-heavy bottles
- Surface finish (glossy glass behaves differently under cameras than matte plastic)
- Closure type and whether it affects handling grip points
- Required orientation accuracy in degrees, not just "close enough"
- Available floor space and conveyor speed
Sanitation and Regulatory Context
For food, beverage, pharmaceutical, and nutraceutical lines, cleanability and guarding aren't optional extras. The ANSI/PMMI B155.1-2023 standard covers safety requirements and risk assessment for packaging and processing machinery broadly, including coordinated line functions — though meeting an industry consensus standard doesn't automatically certify any single machine.
Depending on the product category, other requirements may apply:
- Food contact equipment falls under FDA's 21 CFR 117.40, requiring equipment to be cleanable and properly maintained
- Dietary supplement lines are governed separately under 21 CFR Part 111, Subpart D
- Drug manufacturing equipment must meet 21 CFR 211.67(a) cleaning and maintenance requirements
- General machine guarding falls under OSHA's 29 CFR 1910.212
None of these apply automatically just because a machine touches a container. The actual product-contact surfaces and classification determine which rules apply.

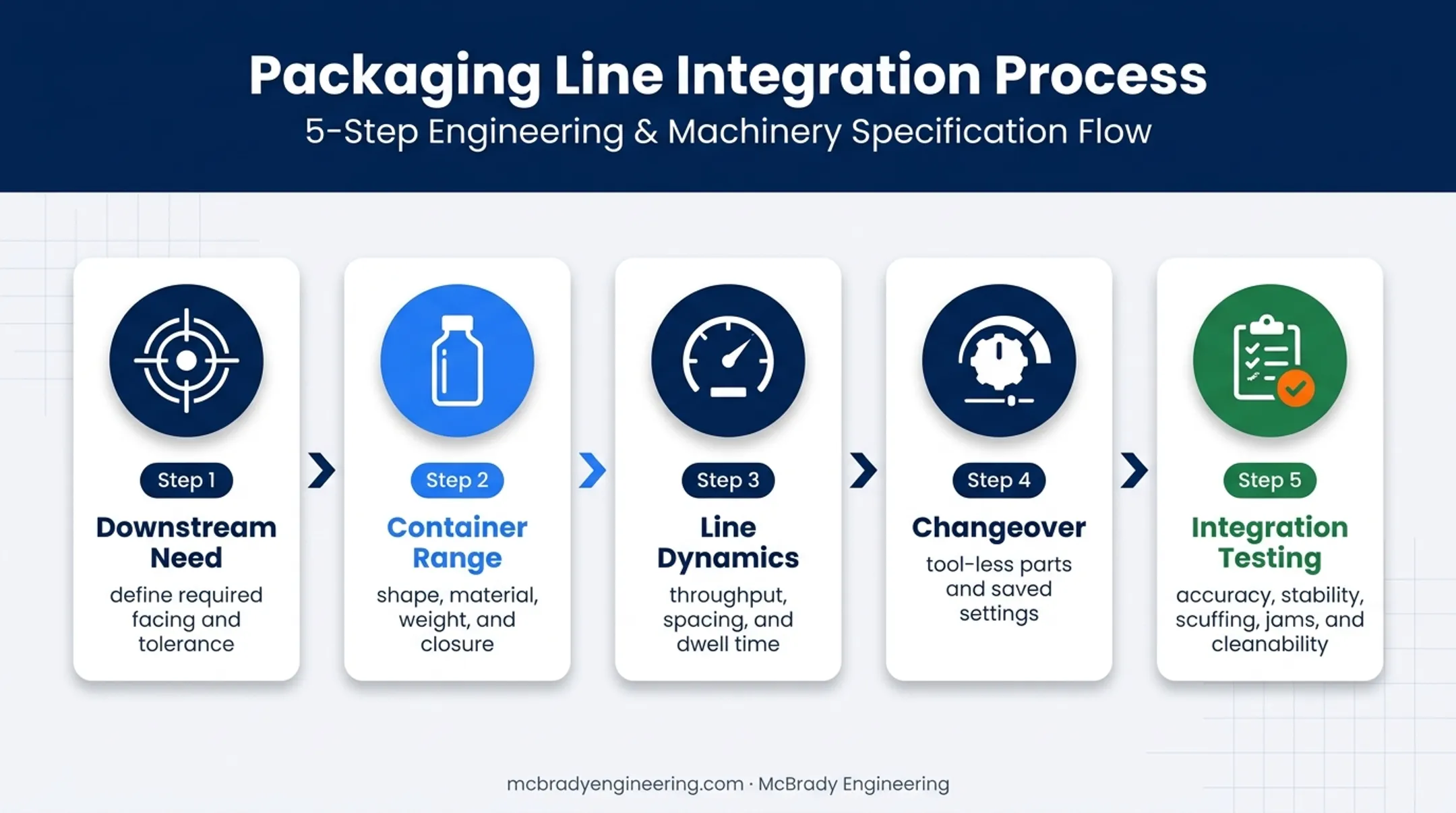

How to Select the Right Orienter System
Start with the downstream machine, not the orienter itself. Ask: which feature needs to face which direction, and how much variation can the next station actually tolerate? A labeler reading a flat panel has a tighter tolerance than a capper that just needs the opening centered.
Document the Full Container Range
Before evaluating equipment, gather:
- Dimensions and shape for every SKU running the line
- Material and wall flexibility (rigid HDPE behaves differently than thin PET)
- Filled versus empty weight and center of gravity
- Closure configuration
- Whether multiple SKUs will share the same orienter
Throughput and Line Dynamics
An orienter that can't keep pace becomes the line's bottleneck. Factors to check:
- Required containers per minute at peak demand
- Upstream accumulation and spacing behavior
- Start-stop operation and how the orienter recovers
- Dwell time if containers pause for detection
Changeover for Multi-SKU Lines
Contract packagers juggling multiple bottle shapes need to ask different questions:
- Are changeovers tool-less, or do they require physical part swaps?
- Can settings be saved and recalled, or does every changeover start from scratch?
- How long does a changeover actually take, and how repeatable is the result afterward?
Integration and Testing
Confirm how the orienter communicates with line controls, safety circuits, and reject handling. Then, before finalizing any purchase, test representative containers. Ask suppliers to verify:
- Orientation accuracy across the full SKU range
- Container stability at running speed
- Surface marking or scuffing
- Jam frequency under realistic conditions
- Cleanability for washdown environments
An orienter frequently needs to work in step with bottle-cleaning equipment, particularly when containers must be presented consistently for interior rinsing, exterior washing, or drying before inspection. This is where line-integration planning matters as much as the orienter itself.
McBrady Engineering's compact bottle-cleaning machinery, including its ORBIT line, mounts over existing conveyors with a small footprint. That layout is a useful reference for fitting cleaning equipment around an orienting step without redesigning the whole line.
For non-standard container geometries, custom engineering work, including 3D modeling and fabrication in stainless or mild steel, can address gaps that off-the-shelf orienting and cleaning equipment doesn't cover.
Applications and Benefits in Packaging Operations
Orienter systems show up across a wide range of industries:
- Beverage bottling: breweries, distilleries, and wineries where handled or embossed bottles need consistent label-facing
- Food packaging: jars and bottles requiring specific panel orientation for printed information
- Pharmaceutical and nutraceutical filling: vials and bottles needing precise presentation for labeling and inspection
- Chemical and household products: containers with asymmetrical shapes moving through washdown-rated lines
Operational Benefits
- Predictable handoff to labelers, cappers, and inspection stations
- Fewer orientation-related jams at high-friction points
- Improved label and print placement accuracy
- Consistent presentation for rinsing or cleaning stations
Trade-offs Worth Weighing
Orienters add footprint, controls complexity, and maintenance points to a line. Container-specific change parts mean validating performance across the entire SKU range, not just the easiest bottle to handle.
Not every line needs one. A line running purely symmetrical round containers, where the downstream process doesn't depend on a specific facing direction, often gets by fine without one. Adding an orienter because it's available, rather than because a real requirement exists, just adds cost and complexity without solving anything.
Frequently Asked Questions
What does 'orienter' mean?
An orienter is a device or system that positions bottles or containers into a consistent direction or presentation for a downstream packaging operation, such as labeling, filling, or inspection.
What does 'orienteer' mean?
An orienteer is a person who participates in orienteering, a navigation-based outdoor sport. It's unrelated to packaging equipment, though the words are easy to mix up.
What is the difference between a bottle orienter and a bottle unscrambler?
An unscrambler takes randomly jumbled containers from a bulk hopper and feeds them upright in single file. An orienter then controls the rotational facing of those already-upright containers for a specific downstream requirement.
When does a packaging line need an orienter?
A line needs an orienter when containers are asymmetrical and a downstream process requires a defined label panel, handle position, opening direction, or inspection surface to face a particular way.
What should be considered when choosing a bottle orienter?
Consider container characteristics, required throughput, orientation accuracy, SKU range, sanitation needs, changeover speed, control integration, and safety guarding. Always test production-representative containers before finalizing a choice.
