Introduction
Standard conveyor equipment works fine until it doesn't. Unusual container dimensions, delicate packaging, frequent SKU changes, tight floor space, or strict cleaning requirements can all push a catalog conveyor past its limits.
Many packaging teams struggle to find equipment that handles odd-shaped bottles, fragile closures, or washdown environments without heavy modification. A 2024 PMMI survey found that 78% of brands prioritize machine flexibility when evaluating new packaging equipment, with 53% citing faster changeovers as a key requirement.
That's where a prototype conveyor system comes in. It lets packaging teams test a custom material-flow concept before committing to full production.
This article walks through defining requirements, designing a prototype, testing under real conditions, integrating with existing equipment, and deciding whether to refine, scale, or replace the concept.
Key Takeaways
- A prototype conveyor is a working test system that validates movement, handling, and integration before finalizing production equipment.
- Design starts with the container, product, speed, and sanitation environment, not a generic off-the-shelf layout.
- Testing with real containers under realistic conditions surfaces transfer, alignment, and changeover problems early.
- A custom engineering and fabrication partner can turn an unusual packaging requirement into a testable machine.
What Is a Prototype Conveyor System?
A prototype conveyor system is a working test unit built to prove out a specific handling concept before a production line is designed or fabricated. Unlike a concept sketch or a cardboard lab mock-up, it is a functioning piece of equipment that moves actual containers under conditions close to the real process.
Proof-of-Concept vs. Production-Intent Prototypes
Not every prototype is built the same way. A proof-of-concept unit answers one narrow question, like whether a bottle will tip during a 90-degree transfer. It may use temporary fixtures, basic controls, and whatever surface material is on hand.
A production-intent prototype goes further. It includes:
- Final or near-final materials and finishes
- Working controls and sensors
- Documentation suitable for validation
- Components closer to what a production machine would use
What a Prototype Typically Includes
Scope varies by project, but most prototype conveyors include some combination of:
- A short conveyor section with belt or roller surface
- Custom guides and transfer points
- Sensors, drives, and basic controls
- Fixtures or interfaces with filling, labeling, inspection, or cleaning equipment
Prototyping pays off most when a project involves:
- A new container format or unusual shape
- Fragile packaging
- Limited installation space
- Frequent SKU changes
- No suitable catalog equipment
In those cases, guessing at a production design wastes time and money. Testing a working model doesn't.
Which Custom Packaging Applications Can Benefit?
Prototype conveyors show up across a wide range of industries, and each one brings its own constraints.
- Beverage: Round, square, and oddly shaped bottles often run on the same line, each requiring different guide spacing and orientation logic.
- Food: Equipment must meet 21 CFR 117.40 cleanability rules to prevent contamination and allergen cross-contact.
- Pharmaceutical and nutraceutical: Small vials and fragile containers demand gentle handling and tight sanitation controls.
- Chemical and household products: Washdown environments and aggressive residues can degrade standard stainless surfaces quickly.
- Industrial packaging: Heavier or irregular containers may need custom supports that catalog conveyors don't offer.
Contract Packagers Face Unique Pressure
Co-packers juggle multiple SKUs across different container sizes, shapes, materials, and closure types. A prototype lets them test rapid changeovers before investing in a production line that might not flex enough.
Common problems worth prototyping include:
- Bottle spacing and orientation control
- Accumulation behavior and elevation changes
- Transfers between machines
- Low-clearance movement
- Unstable or lightweight container handling
Example scenario: A contract packager needs to move an unusually tall, narrow bottle from a filler into a cleaning station before labeling. A prototype section with adjustable guide rails and a slow-speed transfer belt can confirm whether the bottle stays upright through the turn, long before the full line gets built.

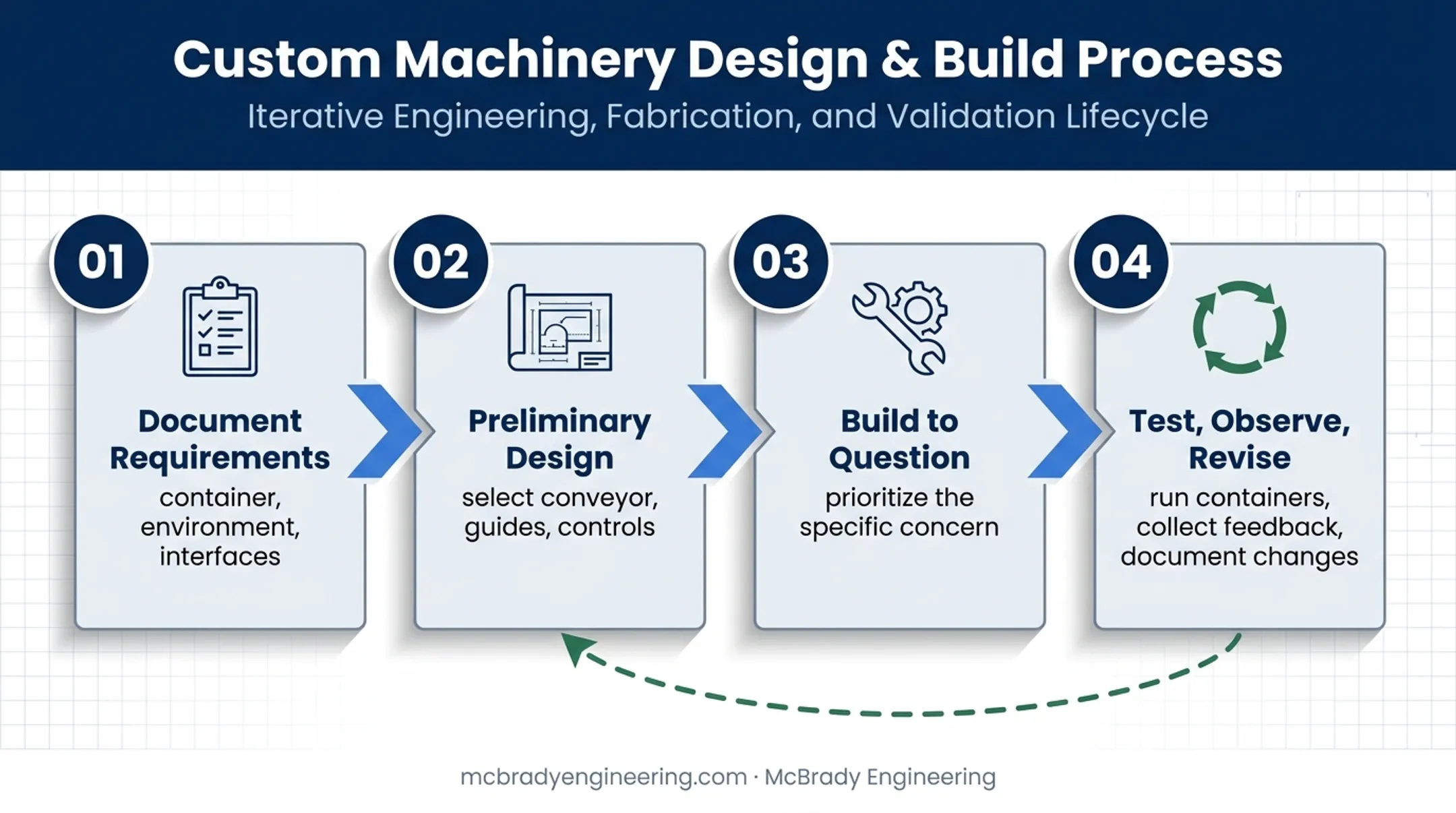

How Are Prototype Conveyor Systems Developed?
Good prototypes start with a detailed design brief, not a blank sketchpad.
Step 1: Document the Requirements
Engineers need specifics:
- Container dimensions, weight, and material
- Surface characteristics and product residue
- Required orientation and desired movement
- Operating environment (washdown, dry, cleanroom)
- Connection points to existing equipment
Step 2: Translate Requirements Into a Preliminary Design
From there, engineers select the core design elements:
- Conveyor type and belt or roller surface
- Guide geometry, supports, and drive arrangement
- Controls, sensors, and guarding
Digital models or physical mock-ups help check clearances, maintenance access, and how the new section will interact with upstream and downstream machines.
PMMI ProSource's specification guidance makes a similar point: input from floor personnel and container suppliers helps avoid design changes that require refabricating parts midway through a project.
Step 3: Build to Answer the Question, Not to Finish the Machine
A prototype should prioritize the specific question a customer needs answered, not every production feature. If the real concern is whether a bottle survives a transfer without tipping, the prototype doesn't need final-grade controls or a finished enclosure yet.
Step 4: Test, Observe, Revise
Run representative containers. Watch for failures and bottlenecks. Collect feedback from operators and integrators. Document every modification, then decide what changes are needed for the next version or the production design.
This cycle might repeat two or three times before a design is ready to scale. That's normal. It's cheaper to revise a prototype than to rebuild a finished production line.
Key Engineering Considerations for a Packaging Conveyor Prototype
A working prototype has to address more than just movement. Several engineering factors determine whether it actually solves the problem.
Container Handling and Product Protection
Belt selection, guide geometry, speed, and spacing all affect whether containers tip, scuff, jam, or lose orientation. Closures and labels can get damaged at transfer points if the design doesn't account for container stability.
Sanitation and Environmental Requirements
Food, pharmaceutical, washdown, and chemically aggressive applications each demand different materials and construction. McBrady Engineering fabricates with stainless steel, including 304 and 316L, along with mild steel, using TIG welding. Every weld is passivated, and pharmaceutical-grade welding is available when projects require it.
Frame construction, drainage, weld finish, and guarding all factor into whether a prototype can realistically represent a sanitary production environment.
Line Integration
A prototype also needs to account for:
- Infeed and discharge heights matching adjacent equipment
- Machine timing and accumulation logic
- Sensors and controls that communicate with existing systems
- Available floor space for the final installation
Safety and Service Access
Guarding, emergency stops, pinch-point protection, lockout provisions, and cleaning access should be part of the design conversation from the start, even at the prototype stage.
Building a Test Plan
A practical test plan uses representative containers, expected speeds, and realistic operating conditions. Record:
- Successful transfers versus stoppages
- Container damage or instability
- Changeover effort between formats
- Cleaning access and sanitation observations
- Operator feedback
- Required design revisions
Any performance claims or acceptance criteria should be confirmed directly with the customer rather than assumed from general industry data.
When Should a Company Choose Prototyping Instead of a Standard Conveyor?
Not every application needs a prototype. Standard conveyors work fine for straightforward, well-understood handling tasks.
Prototyping makes sense when:
- Container geometry is unusual or inconsistent
- Handling behavior is uncertain (will it tip, jam, or scuff?)
- Integration risk is high because the conveyor connects multiple existing machines
- The process is new and unproven
Prototyping vs. Buying Production Equipment Immediately
| Factor | Prototype First | Production Conveyor Immediately |
|---|---|---|
| Learning speed | Fast, hands-on feedback | Slower; issues surface after install |
| Design confidence | Higher before full investment | Lower, more assumptions |
| Initial cost | Added upfront cost | Lower upfront, higher rework risk |
| Schedule | Extra time for testing cycles | Faster if design is correct |
| Scalability | Clearer path to final spec | Risk of costly redesign |
A prototype doesn't guarantee production performance on its own. What it does produce is documented design knowledge and a clearer specification for the final system, which reduces guesswork when the production conveyor gets built.
Working With a Custom Engineering and Fabrication Partner
Starting the right conversation matters as much as the engineering itself.
What to Bring to the First Meeting
- Container samples or detailed drawings
- Line layout and available floor space
- Production objectives and target speeds
- Operating environment and cleaning requirements
- Existing equipment interfaces
- Known failure points from current equipment, if any
Those materials give an engineering partner enough context to judge feasibility and scope.
McBrady Engineering has supported custom engineering and fabrication projects since 1961 from a 30,000-plus-square-foot facility in Joliet, Illinois. Capabilities include 3D modeling, full-scale assembly drawings, finite element analysis, and 2D drawings, so a concept can move from requirements to a testable prototype with clear documentation at each stage.
Questions Worth Asking an Engineering Partner
Before committing to a project, ask about:
- Prototype scope and what questions it will answer
- Materials and construction standards
- Controls and instrumentation included
- Who handles testing and how results get documented
- The revision process if the first version doesn't work
- What production transition looks like
- Ongoing service or support after installation
If your packaging operation is wrestling with an unusual container, a tight footprint, or a handling problem no catalog conveyor solves, it's worth discussing the specifics with McBrady Engineering at (815) 744-8900 or sales@mcbradyengineering.com.
Frequently Asked Questions
What is a prototype machine?
A prototype machine is a working model built to test function, fit, handling, and performance before a final production machine is completed. It answers specific design questions rather than serving as finished equipment.
What is a prototype conveyor system used for?
It validates how packages move through a custom process, including transfers, spacing, orientation, accumulation, operator access, and integration with other equipment on the line.
When should a packaging company prototype a conveyor?
Prototyping makes the most sense when containers, line layouts, or handling requirements are unusual, or when the cost of making changes at the production stage would be significant.
What information does an engineer need to design a conveyor prototype?
Container dimensions and samples, weight, materials, desired speed, line interfaces, operating environment, cleaning requirements, available space, and the specific problem the prototype needs to solve.
How is a prototype conveyor tested?
Testing uses representative containers under realistic operating conditions. Results are documented for stability, transfers, stoppages, damage, sanitation access, changeovers, and operator usability.
Can a prototype conveyor become a production machine?
A successful prototype can inform a production-ready design, but the final machine may still need additional engineering, durability testing, controls development, safety review, and fabrication changes.
